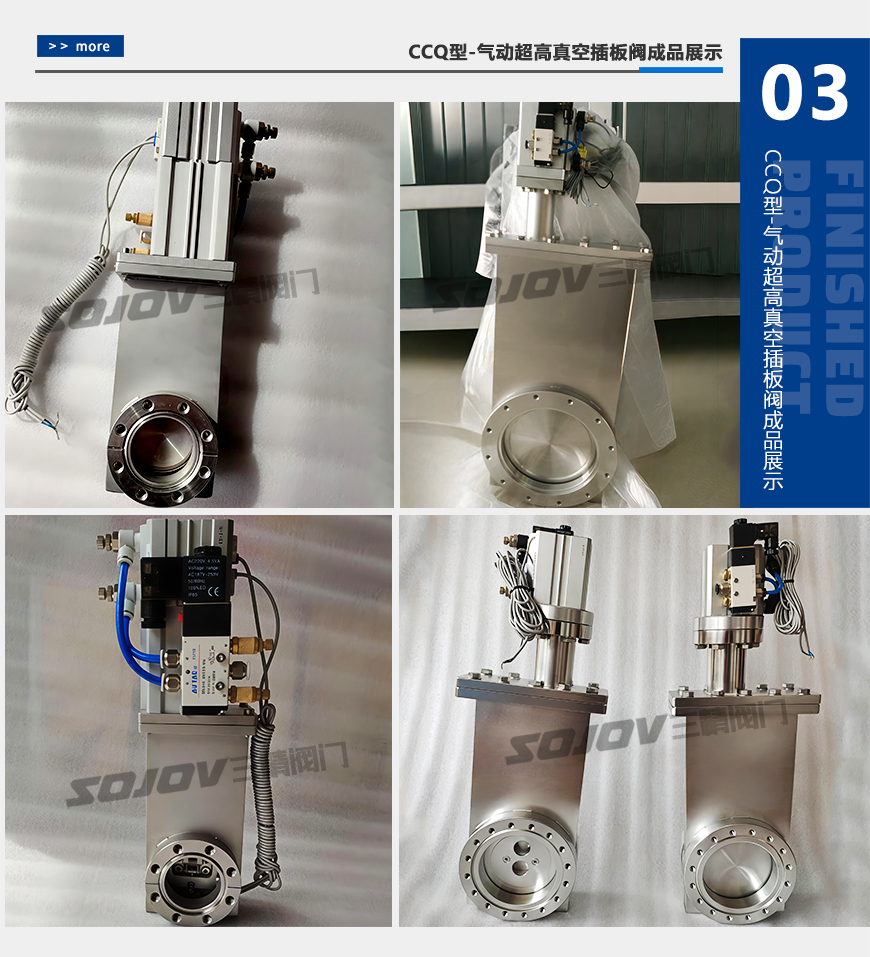

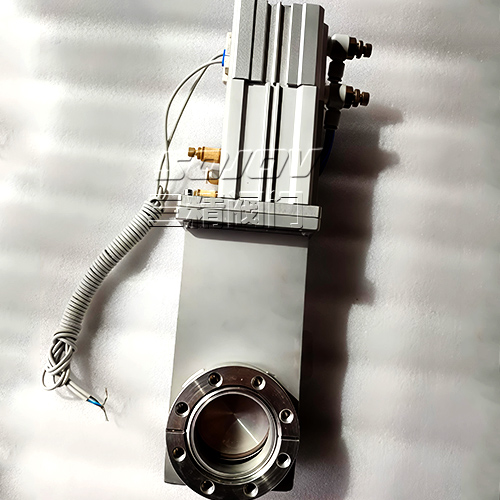

CCQ型-气动超高真空插板阀
  • CCQ型-气动超高真空插板阀
  • CCQ型-气动超高真空插板阀
  • CCQ型-气动超高真空插板阀
  • CCQ型-气动超高真空插板阀

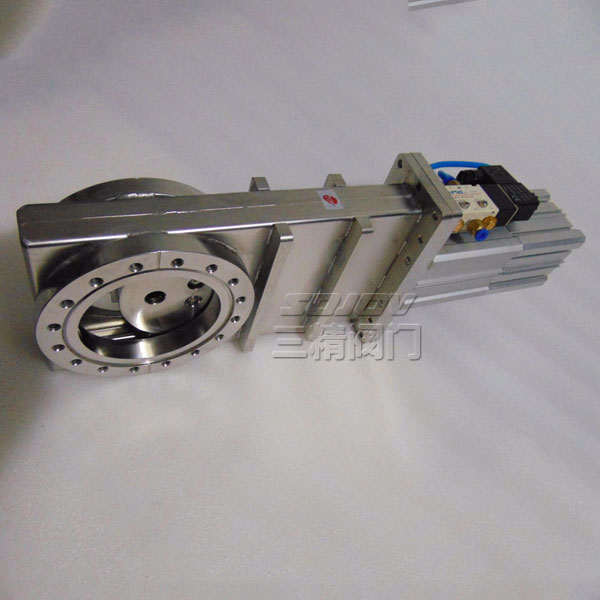

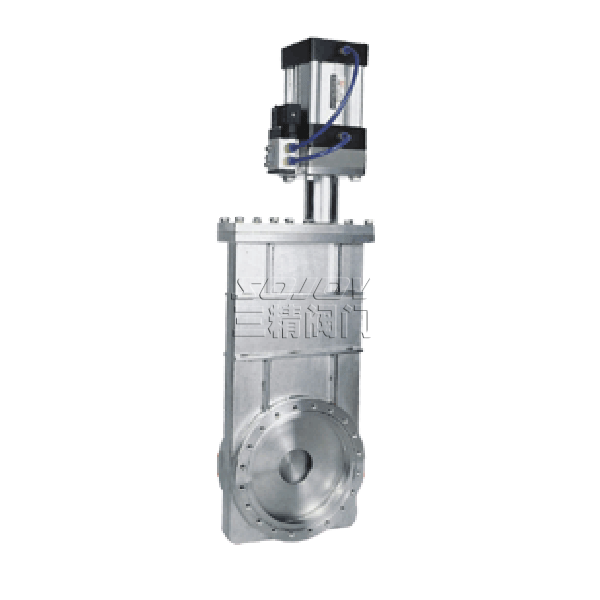

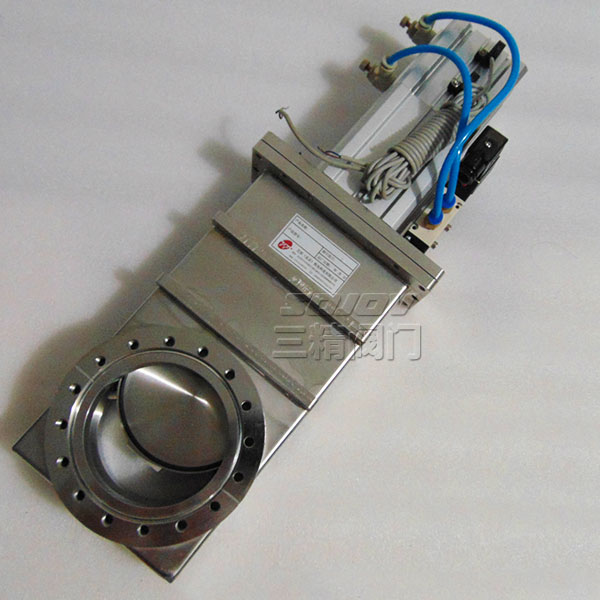

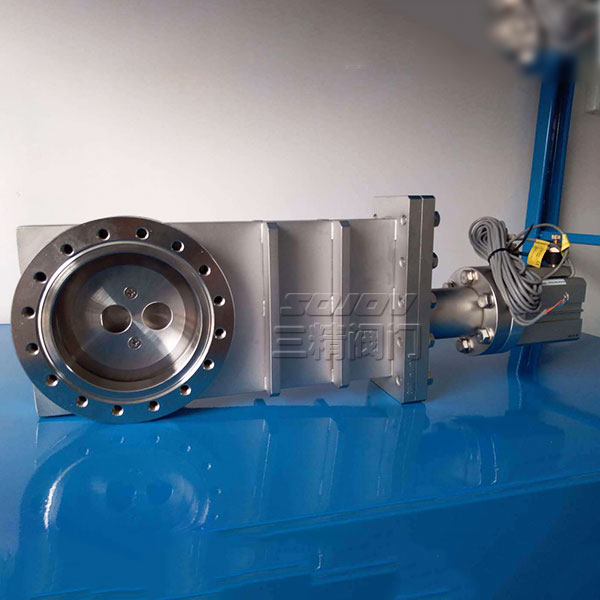

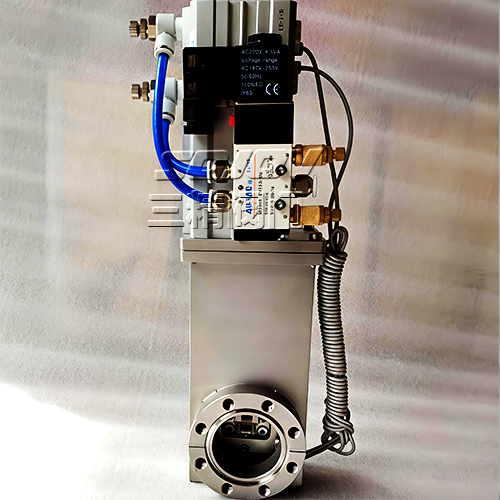

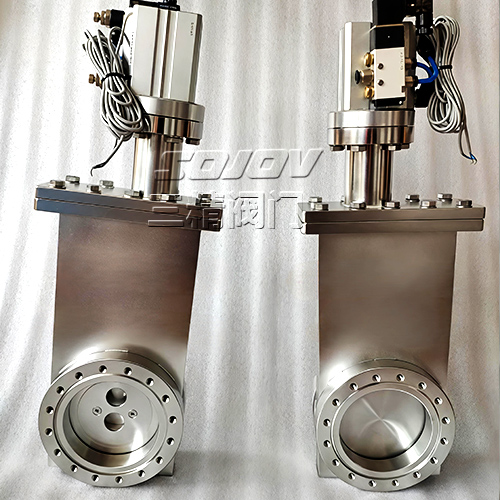

CCQ型-气动超高真空插板阀

CCQ型气动超高真空插板阀是通过电磁换向阀改变气路方向,控制执行气缸驱动阀板作上下运动,达到阀门的开启或关闭。阀门用于接通或切断真空管路中的气流。

产品详情

CCQ型气动超高真空插板阀概述

CCQ型气动超高真空插板阀是通过电磁换向阀改变气路方向,控制执行气缸驱动阀板作上下运动,达到阀门的开启或关闭。阀门用于接通或切断真空管路中的气流。适用介质为纯净空气和非腐蚀性气体。带反馈信号装置。

CCQ Pneumatic Ultra-high Vacuum Gate Valve

CCQ pneumatic ultra-high vacuum gate valve uses solenoid directional valve to change the direction of air passage, and controls the actuating cylinder to drive the valve disc up and down to make the valve opened or closed. It is used to put through or cut off the air passage in vacuum pipeline. Applicable medium can be pure air and noncorrosive gases. With signal feedback device.

CCQ型气动超高真空插板阀主要技术性能

Main Technical Performance

 适用范围:Applicability  105~1.3×10-7Pa
 阀门漏率:Valve Leak Rate  ≤1.3×10-7Pa.L/S.(DN≤200)
≤6.7×10-7Pa.L/S.(DN≥250)
 适用温度:Applicable Temperature  -30~+150℃
 阀门开启时阀板两侧的压差:
The differential pressure between the two sides of valve disc upon valve opening:
 ≤2.7×103Pa.
 气源压力:Annoy pressure  0.4~0.6MPa

主要零件材料

Materials of Main Parts


阀体、阀板:不锈钢
密封件:氟橡胶、波纹管(轴封)、丁腈橡胶。
Body, and disc: stainless steel
Sealing element: Viton, bellows(shaft seal), NBR

外形及连接尺寸(mm)

Overall and Connection Dimensions(mm)

Model
型号
DN A H D Do D1 D2 D3 L L1 G E n-d 法兰标准
CCQ-50 50 60 92 89 72.4 61.6 55.6   515 153 220 65 8-M8 GB6071
CCQ-63 63 65 105 114 92.1 82.6 76.6   566 180 220 80 8-M8
CCQ-80 80 65 130 130 110 99 93   603 200 220 80 16-M8
CCQ-100 100 70 152 152 130.2 120.7 114.7   653 267 220 95 16-M8
CCQ-150 150 70 202 202 181 171.5 165.5   771 350 270 95 20-M8
CCQ-200 200 80 251 253 231.8 222.3 216.6   889 424 270 115 24-M8
CCQ-250 250 85 300 314 288 308 275 271 1127 574 350 140 24-M10 JB5278
CCQ-300 300 85 352 365 338 353 323 318 1197 613 420 140 32-M10
CCQ-320 320 85 372 385 357 379 344 340 1197 613 440 140 36-M10 JB5278
CCQ-400 400 110 456 497 454 480 440 436 1666 810 536 180 36-M12
CCQ-500 500 135 595 590 555 580 540 536 1835 870 640 220 40-M12
CCQ-630 630 135 690 700 658 680 639 635 1930 960 780 280 40-M16
CCQ-800 800 150 880 890 855 880 835 831 2200 1100 950 350 60-M16
